Floating Boat Docks: Boat Lifts |
|
The EZ Port boat lift system can be used under conditions in which traditional lifts cannot. The EZ Port boat lift is simple, versatile, and durable. Docking is as simple as loading onto a roller bed trailer.
Because it floats, EZ Port can be used where water levels vary widely, where lake, river, and ocean bottoms are soft, or where access makes it difficult to install other types of lifts.
The EZ Port boat lifts are engineered for most fiberglass V-style hull boats. The multiple premium Stoltz Rollers can accommodate boats with a 14" to 21" dead-rise angel. And eight different heights can be achieved by positioning the rollers in four possible configurations on two trays.
Docking is as simple as loading onto a roller bed trailer, and this unique docking option will keep your boat high and dry-free from impacts, floating debris, algae, and barnacles. |
 |

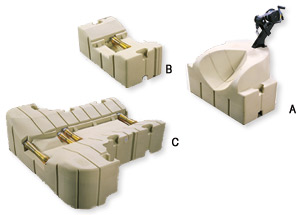

| A. |
Winch/Bow Stop Section #204005FL
20" (50cm) Long, 40" (1m) Wide, 15" (38cm) High.
Section Weight: 45 lbs. (20.4 kg)
Winch: Fulton XLT series 1400 lb. (635kg) winch, 20' (6.1m) strap, and hook.
|
| B. |
Intermediate Roller Section #204020FL
20" (50cm) Long, 40" (1m) Wide, 15" (38cm) High.
Section Weight: 45 lbs. (20.4 kg)
Rollers: One adjustable roller.
|
| C. |
Stern Roller Section #204670FL
60" (1.5m) Long, 70" (1.8m) Wide, 15" (38cm) High.
Section Weight: 150 lbs. (68 kg)
Rollers: Two adjustable rollers. One fixed rear roller.
|
| D. |
Example: Assembled Lift Top of Page
3 - 40" (1m) x 10' (3m) x 15" (38cm) dock sections combined with the Bow Stop, Intermediate Roller and Stern Roller Sections.
Max. Boat Weight: 1500 lbs. (680 kg)
Overall Dock Dimensions: 13' (4m) x 10' (3m)
Boat Length: 12' (3.7m) - 14' (4.3m)
Additional flotation available for heavier boats - see Accessories.
Stern Section adds 18" to length of dock.
Because of the rotomolding process, weights and dimensions may vary.
| |
FEATURES & BENEFITS
- Adjustable polyurethane Stoltz Super Rollers ™
- High-quality Fulton XLT series winch
- Protective bow stop
- Modular intermediate section
- Sculpted stern section aids boarding
- Low maintenance
- Beige color
- Boat launching strap (for specific applications)
| |
|
|
| BOAT LIFT CONFIGURATIONS |
Max. Boat
Weight |
Dock Dimensions
Length x Width
|
12' (3.7m) - 14' (4.3m) Boat Length |
|
A. |
1500 lbs.
(680kg) |
13' x 10'
(4mx3m) |
|
B. |
1600 lbs.
(726kg) |
15' x 10'
(4.6mx3m) |
|
C. |
2100 lbs.
(953kg) |
15' x 13'
(4.6mx4m) |
|
14' (4.3m) - 17' (5.2m) Boat Length |
|
D. |
2300 lbs.
(1043kg) |
18' x 13'
(5.5mx4m) |
|
16' (4.9m) - 18' (5.5m) Boat Length |
|
E. |
1700 lbs.
(771kg) |
18' x 10'
(5.5mx3m) |
|
F. |
1800 lbs.
(816kg) |
20' x 10'
(6mx3m) |
|
G. |
2100 lbs.
(953kg) |
20' x 10'
(6mx6m) |
|
H. |
2300 lbs.
(1043kg) |
20' x 13'
(6mx4m) |
|
I. |
2600 lbs.
(1179kg) |
20' x 16'
(6mx4.9m) |
|
17' (5.2m) - 19' (5.8m) Boat Length |
|
J. |
2500 lbs.
(1134kg) |
20' x 13'
(6mx4m) |
|
K. |
2900 lbs.
(1315kg) |
20' x 16'
(6mx4.9m) | |
|
