Private floating dock with boat lift

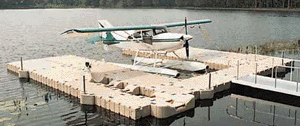

This attractive boat dock system located in Florida provides a large platform surrounding a Sea Plane plus a boat lift.
The boat lift configuration is suitable for boats 16' to 18' and up to 1700 lbs.
Heavy-Duty Poly Pipe brackets and 3.5" Pipe provide anchoring in this shallow, salt-water bay.
A 20' aluminum gangway with a shore-end transition plate provides access and allows the use of a dolly for loading and unloading.
Boat Lifts Bill of Materials
| QTY. |
Description |
Part# |
| 11 |
80" x 10' Float / Deck |
208010 |
| 3 |
60" x 10' Float / Deck |
206010 |
| 1 |
40" x 10' Float / Deck |
204010 |
| 2 |
40" x 5' Float / Deck |
204060 |
| 1 |
Boat Lift Winch / Bow Stop Section |
204005FL |
| 3 |
Boat Lift Intermediate Section |
204020FL |
| 1 |
Boat Lift Stern Roller Section |
204670FL |
| 25 |
Coupler Sets (3-assembly pack) |
201300 |
| 11 |
Coupler Sets (2-assembly pack) |
201200 |
| 6 |
Heavy duty Poly Pipe Bracket for 3.5" O.D. pipe |
110350 |
| 1 |
5' x 20' Aluminum Gangway with Rail |
500520 |
| 1 |
Gangway to Float Bracket (4-pocket) |
100850SS |
| 1 |
Shore-end Transition Plate |
500501 | |
